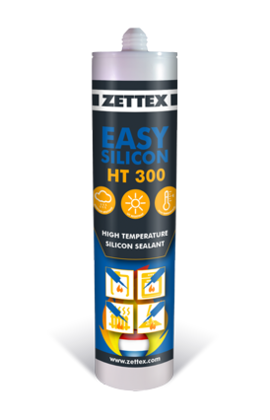

Easy Silicon HT 300
« Pour le sommaire
Product description
Zettex Easy Silicon HT 300 is an acetoxy RTV Silicone Sealant which cures with atmospheric humidity to a permanently elastic seal with outstanding resistance to high temperatures, mineral oils, diluted acids, UV and weathering.
Material
Acetoxy
Features
• Permanent elastic
• Resistance against temperatures of 300 degrees.
• Easy to process
Zettex Easy Silicon HT 300 is an acetoxy RTV Silicone Sealant which cures with atmospheric humidity to a permanently elastic seal with outstanding resistance to high temperatures, mineral oils, diluted acids, UV and weathering.
Material
Acetoxy
Features
• Permanent elastic
• Resistance against temperatures of 300 degrees.
• Easy to process
Packaging
• Cartridge 310 ml
• Cartridge 310 ml
Application areas
The Easy Silicon HT 300 is especially suited for applications where high temperature resistance is required e.g. heat converters, boilers, steam piping, radiators, ovens, electrical insulation as well as for formed in place gaskets in the automotive field, e.g. overhead cam valve and timing chain covers, oil pans, water pumps, thermostat housings, transmission pans, etc.
The surface have to be clean, dry, free of dust and other contaminants. Adheres on most non porous materials such as metals, glass, rigid plastics, ceramic, etc. Clean surfaces with Isopropanol or other solvent.
The Easy Silicon HT 300 is especially suited for applications where high temperature resistance is required e.g. heat converters, boilers, steam piping, radiators, ovens, electrical insulation as well as for formed in place gaskets in the automotive field, e.g. overhead cam valve and timing chain covers, oil pans, water pumps, thermostat housings, transmission pans, etc.
The surface have to be clean, dry, free of dust and other contaminants. Adheres on most non porous materials such as metals, glass, rigid plastics, ceramic, etc. Clean surfaces with Isopropanol or other solvent.
| Propriété | Spécification |
|---|---|
| Density | 1.04 |
| Viscosity | Non-sag paste |
| Tack-Free time | 10 min |
| Cure time at 23 ℃, 50 % r.h. | 4 mm/24 h |
| Hardness Shore A | 25 |
| Tensile strength | 1.8 MPa |
| Shear strength (alu, 1 mm) | 2.0. MPa |
| Elastic Modulus 100 % | 0.52 MPa |
| Elongation at break | 500 % |
| Recovery from deformation | 98 % |
| Temperature resistance | -60 ℃ to 270℃. Temporary until 300 ℃ |
| Dielectric strength | 20 kv/mm ASTM D 419 |
| Dielectric constant | 3 at 1 Mhz ASTM D 150 |
| Dielectric dissipation factor | 3x10-3 at 1 Mhz ASTM D 150 |
| Volume resistivity | 2x1015 OHM cm ASTM D 257 |
| Thermal conductivity | 315 cal/sec./cm2, ℃/cm |
